Product Name：Jumbo Conduit Connector
Product Code：JGFPM
Inquiry
General
Variants
JGFPM Jumbo Conduit Connector
Material
Nylon 66, reinforced nylon PA6
Color
Dark grey (RAL 7037), black (RAL 9005)
Temperature
-40℃~115℃
Protection grade
IP54, when O-ring and pipe sealing ring frm are used, the protection grade reaches IP68
Grey
Black

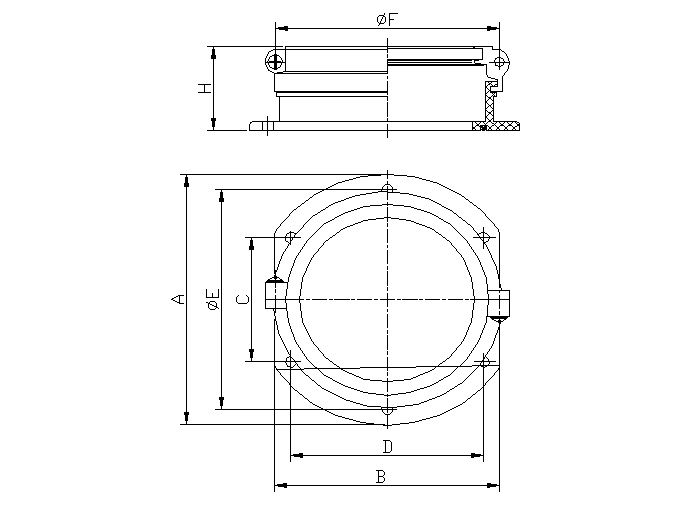

Conduit size
A
(mm)
B
(mm)
C
(mm)
D
(mm)
E
(mm)
F
(mm)
H
(mm)
Screw
JGFPM-AD67.2G
JGFPM-AD67.2B
AD67.2
96
80
60
66
0
89
39.5
M6
JGFPM-AD80G
JGFPM-AD80B
AD80
112
95
60
80
100
96.5
44.5
M6
JGFPM-AD106G
JGFPM-AD106B
AD106
128
126
74
108
131
125.5
50
M6
