Drag Chain Model
Inner Width Bi(mm)
Outer Width Ba(mm)

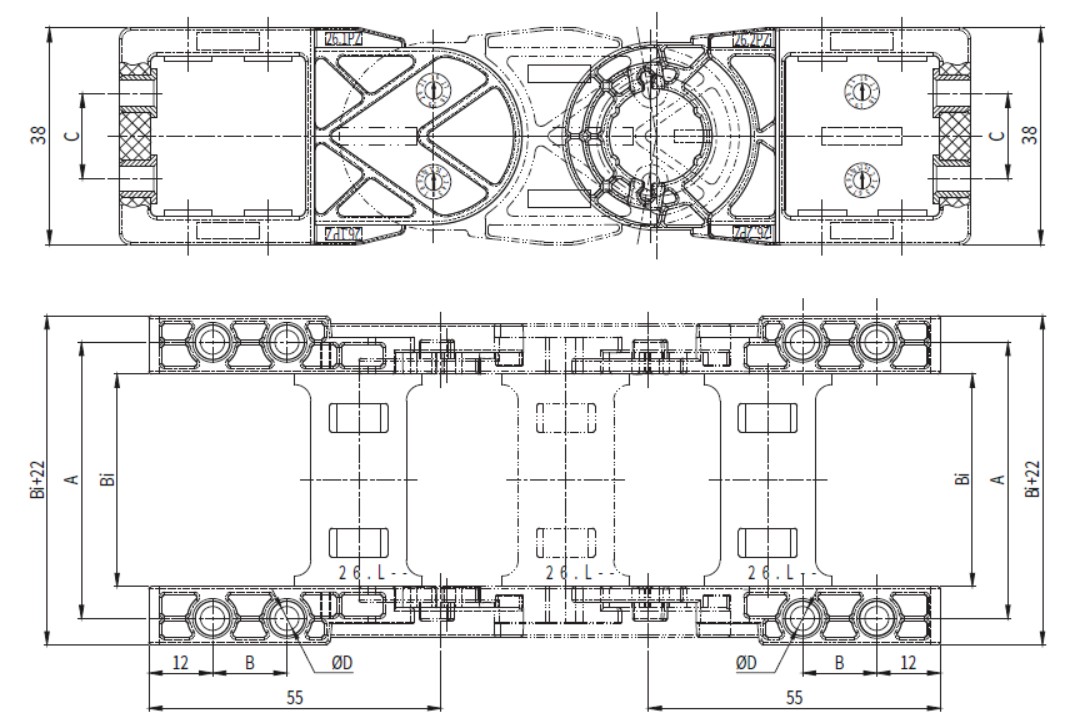

Corresponding Fixed Joint Model
A(mm)
B(mm)
C(mm)
D(mm)
26SC.40.R
40
59
26SC.40.12PZ
52
14
15
4.5
26SC.50.R
50
69
26SC.50.12PZ
62
26SC.75.R
75
94
26SC.75.12PZ
87
26SC.100.R
100
119
26SC.100.12PZ
112
26SC.125.R
125
144
26SC.125.12PZ
137
26SC.150.R
150
169
26SC.150.12PZ
162
★ When ordering, you must choose an appropriate and accurate value from the optional bending radius R
