SNM Preprinted Side Buckle N-type Marker

Product Name：Preprinted Side Buckle N-type Marker

Product Code：SNM

SNM Pre Printed Side Buckle N-type Marker
Material color	Rigid PVC, white
Model	S type is suitable for 0.95 ~ 1.3 square cables, M type is suitable for 0.5 square cables, and L type is suitable for 0.75 ~ 5.5 square cables)
Features	Wire and cable tag numbers designed with the idea of saving space. You can install the tag number after the wire is installed

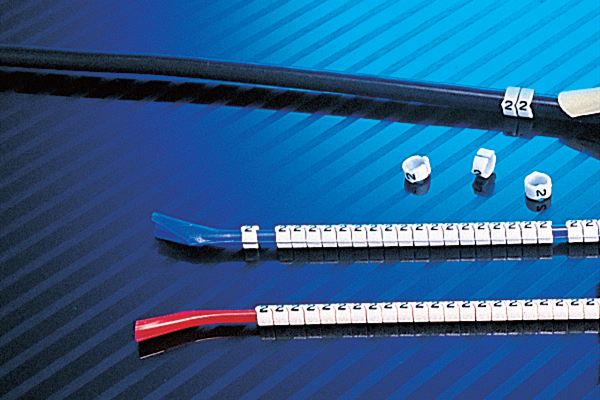

Usage	As shown in the right figure, close the bell mouth to the wire, and then push the sign with your fingers to slide the sign onto the wire and clamp it firmly

Type	Model	For cable square (mm²)	For wire diameter (mm)	Character length L(mm)	Inner diameter ID(mm)	Outer diameter OD (mm)	Optional characters	Characters in each strip (pcs/strip)
S-type	SNM-S1	0.95~1.3	0.9~1.7	2.3	0.9	1.7	0,1,2... 9, A, B,... Z, +, -, blank	30
Type M	SNM-M1	0.5	1.8~2.8	3.0	1.8	2.8		30
Type L	SNM-L1	0.75~1.25	3~3.7	3.0	2.7	3.9		30
	SNM-L2	2.0~3.5	3.9~4.3	3.0	3.2	4.6		15
	SNM-L3	3.5~5.5	4.0~6.0	3.0	4.4	5.8		10
